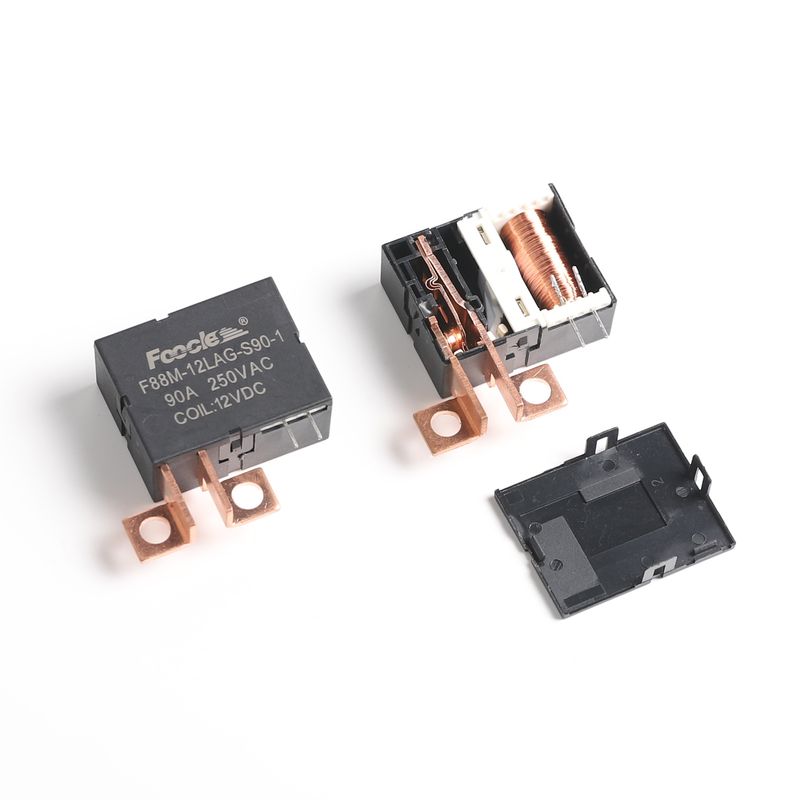

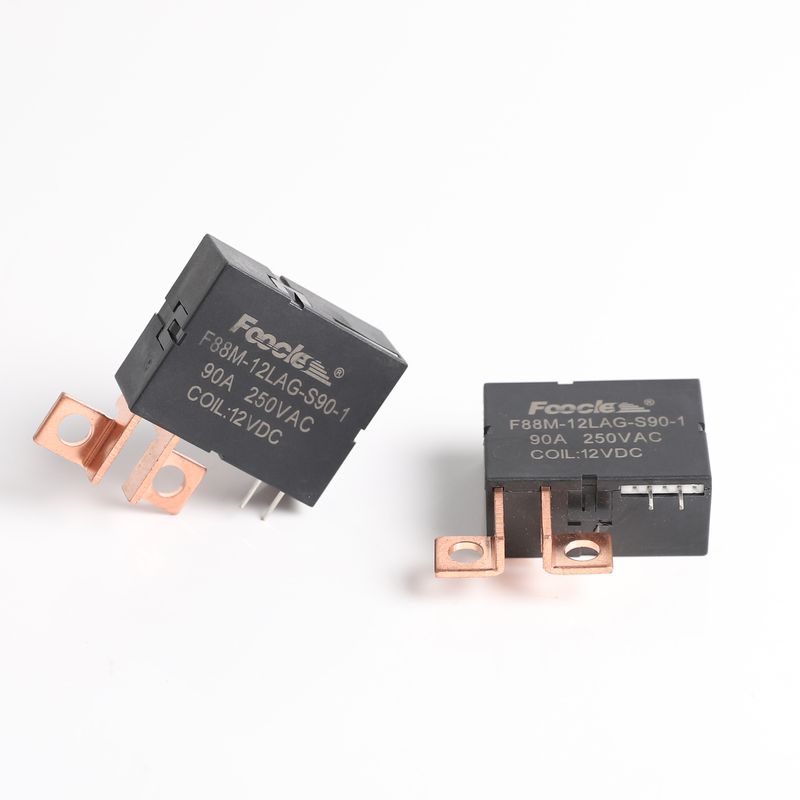

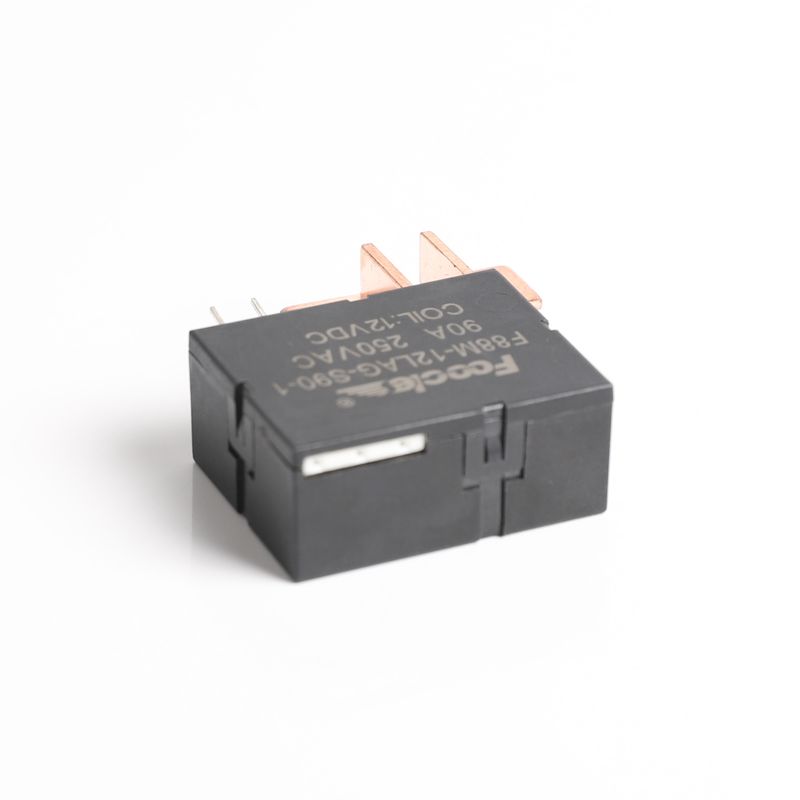

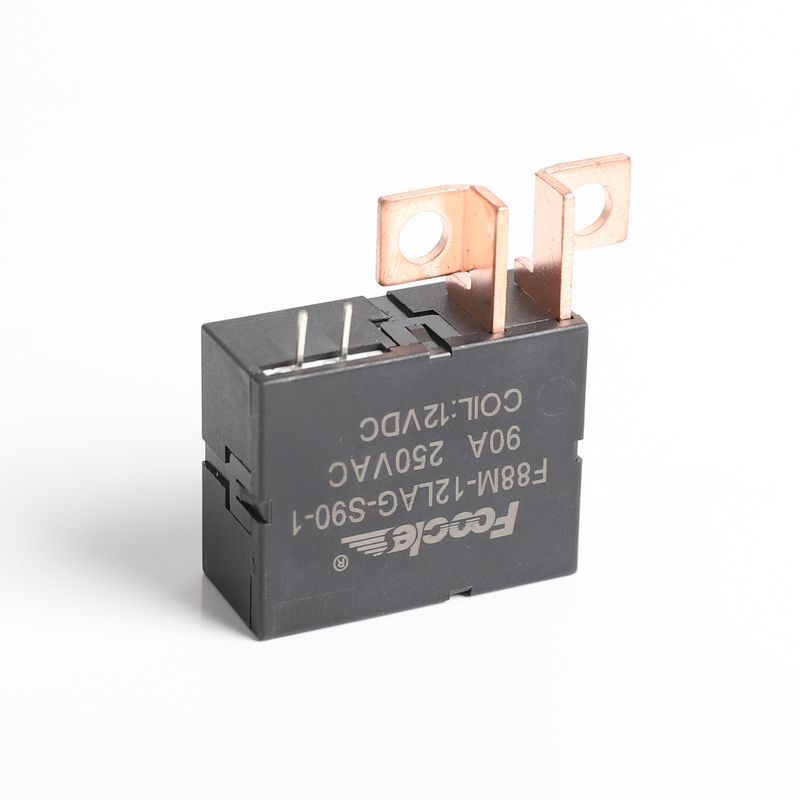

F88M-12LAG
Only pulse excitation, single, double coil, a manual switch control
负载能力强，可切换80A/250VAC 100A/250VAC
Strong load capacity, can be switched 80A / 250VAC
功耗低，体积小
Low power consumption, small volume
可根据客户要求焊接附件
According to customer requirements for welded attachment
性能参数Performance parameters
|
吸合时间(额定电压下) Response time |
20ms,Max |
|
|
释放时间(额定电压下) Release time |
20ms,Max |
|
|
绝缘电阻 Insulation resistance |
100MΩ(DC500V) |
|
|
介质耐压 Dielectric withstanding voltage |
触点与触点间AC1500VAC,50/60Hz Min |
|
|
触点与线圈间AC 4000VAC,50/60Hz Min |
||
|
抗振动Vibration resistance
|
耐久 Durable |
10~55Hz, 双振幅1.5mm |
|
误动作 False action |
10~55Hz, 双振幅1.5mm |
|
|
抗冲击impact resistance |
耐久 Durable |
10G Min |
|
误动作 False action |
50G Min |
|
|
寿命 Life |
机械寿命Mechanical life |
100,000cycles |
|
电气寿命Electr life |
10,000cycles |
|
|
环境温度 Ambinet temperature |
-30～+70℃（不凝结） |
|
|
重量 Weight |
约 45g |
|
触点参数Main contact parameters
|
触点形式 Contact arrangment |
1A一组常闭 |
|
|
触点材料 Contact material |
银铜合金 |
|
|
接触电阻 Contact resistance |
2mΩ Max(1A 24VDC) |
|
|
触点负载 Contact load |
80A 250VAC |
90A 250VAC |
|
最大切换电压 Max switching voltage |
250VAC |
250VAC |
|
最大切换电流 Max switching current |
80A |
90A |
|
最大切换功率 Max switching power |
20000VA |
22500VA |
|
最大短路电流 Max switching voltage |
2400VA 10ms |
2500VA 10ms |
线圈参数Coil parameters
|
额定电压 VDC Rate Voltage |
线圈电阻±10% |
额定功率（W） |
过载电压（V） |
吸合电压（V） |
释放电压（V） |
脉冲宽度 |
||
|
单线圈 SingleCOil |
双线圈 DoubleCOil |
单线圈 SingleCOil |
双线圈 DoubleCOil |
|||||
|
5 |
25 |
12.5/12.5 |
1W |
2W |
≤150% |
≤75% |
≤75% |
≤60ms |
|
6 |
36 |
18/18 |
||||||
|
9 |
81 |
40/40 |
||||||
|
12 |
144 |
72/72 |
||||||
|
24 |
576 |
288/288 |
||||||
|
30 |
900 |
300/300 |
||||||
|
36 |
1296 |
648/648 |
||||||
